Demister Pad

SINFT® mesh pads, filters, and bulk knitted wire mesh are all manufactured at our Commpany, China hebei location. These products are made using only the highest quality stainless steel and specialty alloy materials sourced from other wire mesh Industries

WE CAN SUPPLY

As a full-service provider of mass transfer, mist elimination, and phase separation equipment, we can handle everything from design and fabrication to delivery while providing the long-term support you can rely on.




SPECIFICATION



Knitted Mesh Demister Pad

SINFT® mesh pads, filters, and bulk knitted wire mesh are all manufactured at our Commpany, China hebei location. These products are made using only the highest quality stainless steel and specialty alloy materials sourced from other wire mesh Industries


Select by Shape:

Round:
A circle is one of the most common shapes for mist eliminators. Large pads can be split into multiple sections to easily pass through manways.

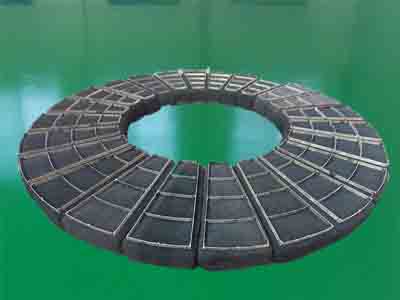

Ring:
Ring shaped demister pads feature a circular opening to accommodate tank piping.




Rectangle:
Like round mist eliminators, rectangular pads can also be manufactured in multiple sections to pass through narrow manways.



Supporting Grid Structure：

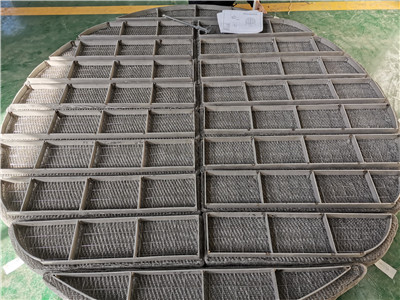

Custom demister pads can be manufactured as either one unit or individual sections. Just like its shape, the structure of a demister pad is typically dictated by its installation requirements or equipment setup. The number of sections constructed depends on the overall diameter of the pad and the size of the manway required to install the finished product. This can range from  While it may not be necessary for small demister pads, larger ones often require top and bottom supports. This grid configuration adds strength and structural support to the pad, while also securing the mesh and preventing it from unfurling from the edges.

The Hebei region in China has the world's largest metal grating industrial belt. Relying on our own raw material processing capabilities, we can better guarantee quality and save costs for you.






Central Wire	Wire Diameter	Mesh Density
SFT-D-P-1	0.011"	5.0
SFT-D-P-2	0.011"	7.0
SFT-D-P-3	0.011"	9.0
SFT-D-P-4	0.011"	11.0
SFT-D-P-5	0.011"	12.0
SFT-D-P-6	0.006"	7.2
SFT-D-P-7	0.006"	8.0
SFT-D-P-8	0.006"	12.0

Customized Processing According to Raw Materials

SINFT is available in a variety of different alloy material to meet the needs of your application or equipment setup. 300 series stainless steel is a common choice for mist eliminators because it provides corrosion and rust resistance while still maintaining a long service life.


SINFT is an ISO9001:2015 certified company engaged in a wide arena of filtration/separation manufacturing. We are totally focused on delivering Filtration & Separation equipment of the highest grade in quality and reliability. Sinft can offer custom demister pad services and drawings to meet your specific applications. Welcome to our website: www.misteliminator.net
