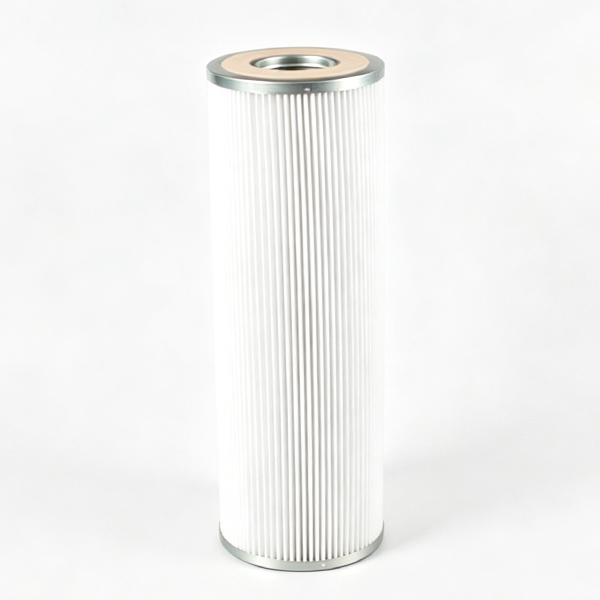

1. PH SERIES

These durable cartridges stand up to continued use without softening and deterioration as a result of exposure to water. The key is an advanced synthetic media that provides maximum filtration with minimum pressure drop.

PH filter cartridge Applications ：Engine and turbine lube, compressor lube and seal oil, cooling water,process water,and chemicals.



SINFT Drawing for your reference:

In our database, each filter element is accompanied by detailed engi neering drawings. These drawings provide precise specifications ： dimensions, precision, fiberglass type, support tube thickness, and other detailed data. We strictly adhere to the drawings during the production process to ensure the high quality of our filter elements.

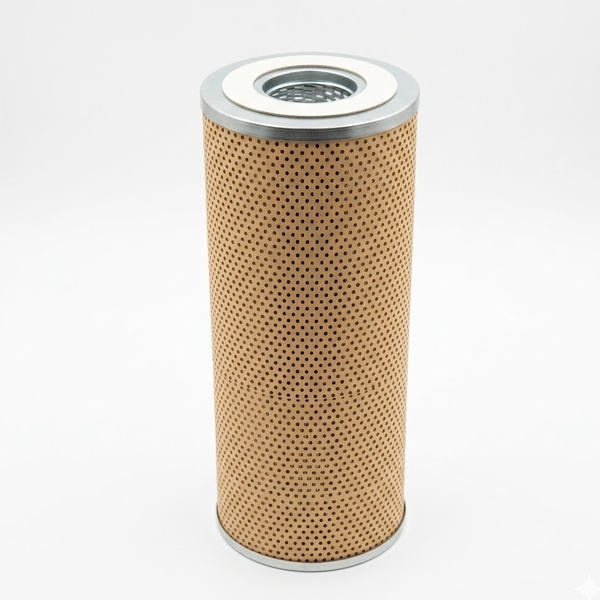

2. PL SERIES

This series for applications:  Refrigeration compressors (lube and coolant), gas turbines, centrifugal lubricated couplings, high-pressure fluid filtration, and test stands.



PHOTO	FEATURES	PART NUMBER
	Features and Benefits • Designed to withstand temperatures up to 250º F • Controlled-radius pleats maximize effective filtration area and dirt-holding capacity • Designed to withstand pressures up to 100 PSI • Composed of specially formulated filter media to provide the most effective combination of fluid particle separation, fluid compatibility, and structural properties	PL310-**-C:L*OD*ID 9 11/16"X 2 3/4"X 1 1/16" PL310-01/03/05/10/12-C PL310-03/05/10/12-CV PL310- 03/05/10/12- BC
		PL511-**-C: L*OD*ID 11"X 4 5/16"X 1 3/4" PL511-03/05/10/12/16/20-C PL511-**-CG: L*OD*ID 11 1/2"X 4 5/16" X 1 11/16" PL511-03/05/10/12-CG PL511-03/10-NCG
		PL518-**-C: L*OD*ID 18"X 4 11/16"X 2 9/16" PL518-03/05/10/12-C PL518-05-CV
		PL718-**-CN: L*OD*ID 18"X 6 1/4"X 2 9/16" PL718-02/03/05/10/12/16/20-CN

SINFT Drawing for your reference: From the drawing, we can clearly see the detailed information about the microglass filter media, cellulose-media layer, support tube, sealing method and others.

THE CROSS REFERENCE LIST

PART NUMBER	CROSS REFERENCE
PH718-03-CN	Baldwin PT23508MPG / CATERPILLAR 3I1732 /Donaldson P170103/ Fleetguard HF35035 / FLUITEK FLK0218686 / HY-PRO HP101L1825MB / HY-PRO HP102L1825MB KAYDON KM60188 / PALL HC0101FCT18H / PALL HC0101FDT18H / PALL HC0101FKT18H PALL HC0101FUT18H / Parker 933914Q / SF-FILTER HY90995 / Wix 57729
PH718-05-C	Donaldson P170102 / Fleetguard HF35035
PH718-05-CN	FLUITEK FLK0219331 / GENERAL-ELECTRIC 342A2581P020 / HY-PRO HP102L1840MB/ KAYDON KM601815
PH718-11-CNVGE	HY-PRO HP101L1812MV / HY-PRO HP102L1812MV / PALL HC0101FCS18Z PALL HC0101FDS18Z / PALL HC0101FKS18Z / PALL HC0101FUS18Z PALL HC2618FCS18Z / PALL HC2618FDS18Z / PALL HC2618FKS18Z PALL HC2618FUS18Z
PH718-12-CN	HY-PRO HP102L186MB / PALL HC0101FCN18H / PALL HC0101FDN18H PALL HC0101FKN18H/ PALL HC0101FUN18H /PALL HC2618FCN18H PALL HC2618FDN18H / PALL HC2618FKN18H / PALL HC2618FUN18H RACOR FP7185C / RACOR FP7185N / SF-FILTER HY90994
PH739-03-CG	INTERNORMEN 301058 / MAHLE 891030SMX25 / / MANN & HUMMEL HD15355 MP-FILTRI CU9503A25AN / MP-FILTRI CU9503A25ANP01 / MP-FILTRI CU9503A25N PALL HC8300FCT39H / PALL HC8300FDT39H / PALL HC8300FKT39H PALL HC8300FUT39H / Parker 929111 / Parker 932875Q / Parker 938739Q / Parker G03460 / Parker GO3460 / SF-FILTER HY20211 /SF-FILTER SFF44046
PL310-05-C	BALDWIN F-905-W/ FACET FI-209-40-3 / FILTERITE C5A10T FLEETGUARD FF-113 / WIX51066
PL310-03-C	FACET FI-209-20-3 / REFILCO PL310-3-306
PL511-05-C	BALDWIN PT386/ FACET FI-511-40/ FLUITEK P4611-5A /MURPHY MP-511205
PL511-10-C	FACET FI-511-50 / FLUITEK P4611-10A / REFILCO PL511-10-11
PL718-10-CN	BALDWIN P41510A / FACET C-8026 / FLUITEK P6018-10H2 PECO PP-718-10 / PUROLATOR 30002-10

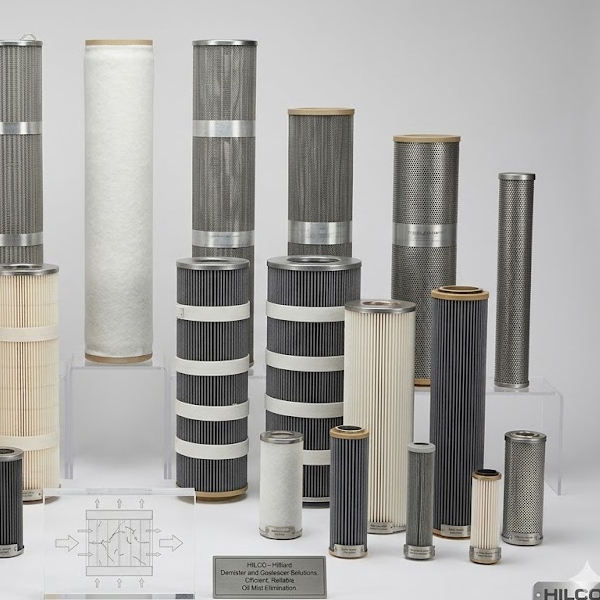

3. DEMISTER ELEMENT

Demister Cartridge utilizes an inside out flow in order to trap the oil from the air stream and return it to the oil reservoir for reuse. The resulting clear air can be safely released to the atmosphere with no environmental impact whatsoever.

The Oil Mist Eliminator provides many industries with an essential, reliable system to minimize the environmental impact of essential operations.

Applications Marine/Shipping - Mid Stream Gas - Mining - Natural Gas Pipeline Transmission - Oil & Gas - Power Generation - Pulp & Paper - Refinery - Steel Industry


	Efficiency	99.97% Total Emissions
	Carryover	Less Than Or Equal To 5 PPm
	Liquid Loading	5000 Milligram/Cubic Meter
	Coalescer Media	Fiberglass, Polypropylene,& Cotton
	Disposal	Normal Oil Filter
	Adhesive	Urethane
	O-Ring Seal	Viton
	Part Numbers	DM820-00-C: 16 INCHES WATER @ 50 CFM DM830-00-C:16 INCHES WATER @ 75 CFM DM839-00-C:16 LINCHES WATER @ 100 CFM

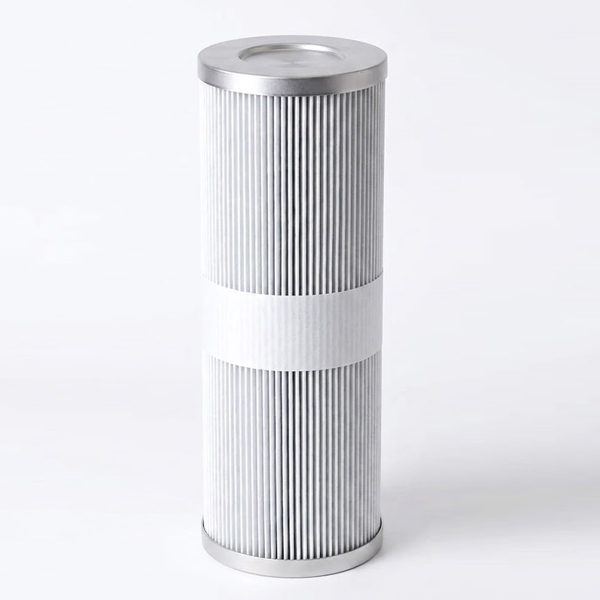

4. PD HILSORB CARTRIDGES

Hilsorb Dryer Cartridges quickly and effectively remove solid and water contaminants from hydraulic, lube and insulating oils. The PD cartridge is made with a patented four-ply construction and is available in two efficiency ratings.


	The Hilsorb Dryer features high-volume solid partculate and  water removal capacity. The patented pleated construction  permits higher flow rates at lower pressure drops than other  dryer cartridges. The proprietary arrangement of the media  layers provides a low pressure drop throughout the useful life  of the cartridge, but as it nears saturation with water, the pressure drop increases to signal the need for a change.	Applications:  Insulating oils, hydraulic oils, lube, and fuel oils. Benefits ●High water-holding capacity ●Efficient particulate removal ●Low initial pressure drop ●High flow rate ●Increasing pressure drop signals saturation
Model number we can supply: PD718-12-CN : ID 2.56” OD 6.25” L 18” PD718-03-CN : ID 2.56” OD 6.25” L 18” PD511-12-C: ID 1.75” OD 4.68” L 11” PD310-12-C: ID 1.063” OD 2.75” L 9.68” PD718-12-CRN: ID 2.093” OD 6.25” L 18”  PD718-03-CRN :ID 2.093” OD 6.25” L 18” PD511-03-C: ID 1.75” OD 4.68” L 11”  PD310-03-C: ID 1.063” OD 2.75” L 9.68”



5. HP SYNTHETIC HIGH PRESSURE CARTRIDGES

High-pressure hydraulic cartridges are engineered for 2000 PSI pressure. The ability to withstand high pressure permits placement in the high-pressure circuit to protect sensitive hydraulic components. Contains micro-glass filter media between protective screens.

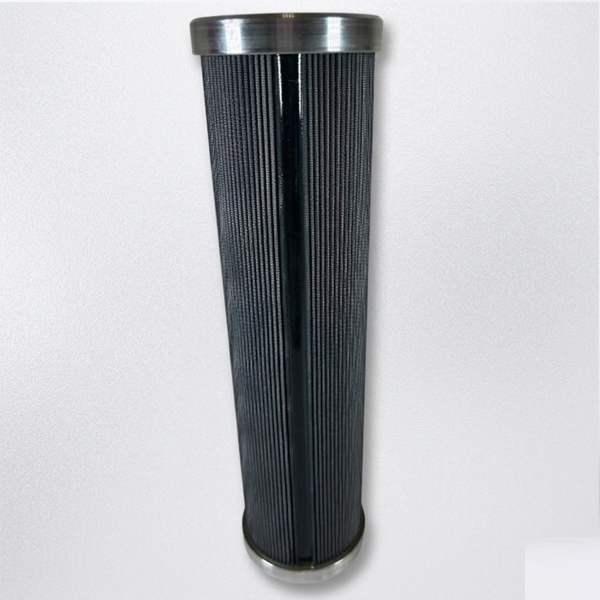

HP filter cartridge
Model number: HP311-05-GE HP311-12/GE HP321-12-GE  Applications: High-pressure hydraulic oil systems.

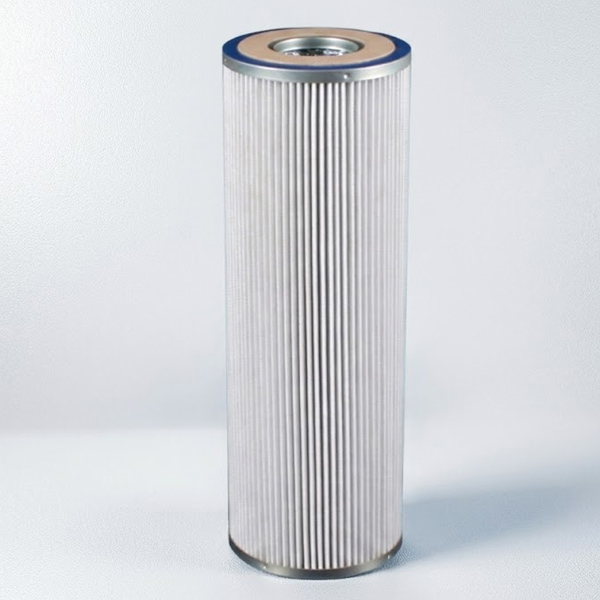

6. O-RING SEALED 718/736 CARTRIDGES

High-pressure hydraulic cartridges are engineered for 2000 PSI pressure. The ability to withstand high pressure permits placement in the high-pressure circuit to protect sensitive hydraulic components. Contains micro-glass filter media between protective screens.


Applications	Feature	Construction Materials
	• Microglass filter media is sandwiched between two protective layers of Nylon media, then supported with an inner and outer layer of epoxy-coated steel screen. • Inner and outer support screens provide a rigid pleat structure to withstand high cyclic and pulse fl ow fatigue. • Synthetic media enables the cartridge to be used in a wide range of applications, including those which could deteriorate a standard cellulose paper cartridge (e.g. water exposure). • O-ring sealed ends means positive sealing for critical applications	• Media: Microglass fi lter media sandwiched bweteen two protective layers of nylon media then supported with an inner and outer layer of epoxy steel screen. • Center Tubes: Tin-plated steel • End Caps: Coated steel • O-ring Seals: Buna-N standard, others are available • Collapse Pressure: 100 psid (6.9 bar) • Maximum Service Temperature: 250º F
Model number we can supply: PH618-XX-CG OD: 6” L 18” PH636-XX-CG OD: 6” L36”



7. SELEXSORB GT FILTER CARTRIDGES

Selexsorb GT is a patented adsorbent specifically designed for use with Fyrquel gas turbine lube and hydraulic control fluids. Another application is steam turbine EHC control industrial hydraulic systems. The unique composition of this adsorbent maintains the original, superior properties of these fluids for prolonged periods. Benefit

• Longer fluid life - Fluid changeout intervals are greatly lengthened, and the fluid is maintained in near-original condition.
• Increased equipment life - A result of continual removal of acid phosphates and moisture.
• Standard sizings - Designs fit most standard Hilco filter housings (e.g., 718, 119).

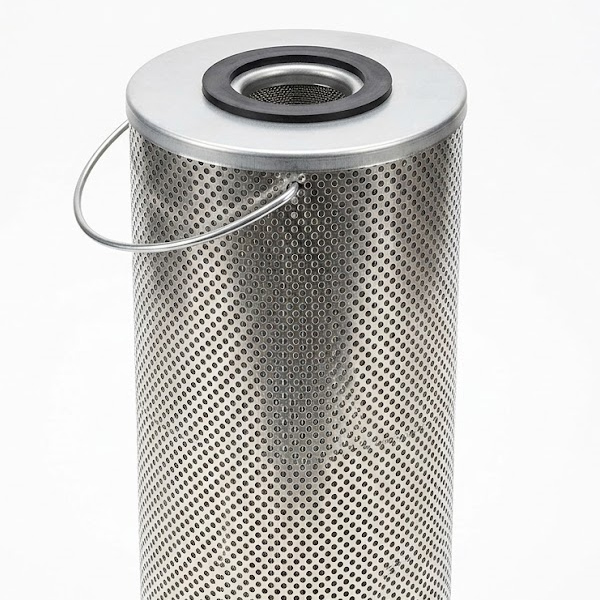

Selexsorb GT Filter Cartridges
Model number we can supply: ST310-00-C ID1” OD3” L 10” ST511-00-C ID1 3/4”” OD5” L 11”  ST718-00-CRN ID2” OD7” L 18”  ST718-00-CN ID2 1/2” OD7” L 18”  ST119-00-03ZXC0 ID2 1/4” OD11” L 19”



8. GAS COALESCER / SEPARATOR CARTRIDGES

It was designed to remove moisture and particulate contamination from steam and gas turbine lube oils.


Gas Coalescer / Separator Cartridges
	Self-sufficient stand-alone models with reser voir capacity ranging from 2,000 gallons to  12,000+ gallons and portable models as well  as custom designs are available.	Applications Marine/Shipping - Mid Stream Gas - Mining -  Natural Gas Pipeline Transmission - Oil & Gas  - Power Generation - Pulp & Paper - Refinery - Steel Industry

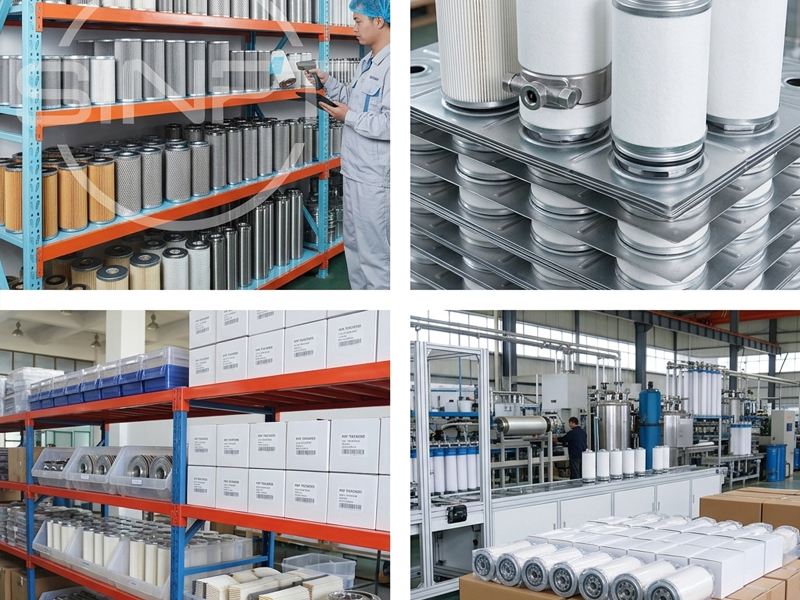

REPLACEMENT FILTER CARTRIDGE PRODUCTION

SINFT has one hundred thousand level dust-free filter element production workshop.

There are 156 production equipments : 51 pieces welding equipments, 5 sets cutting equipment. 20 pieces defor mation equipment.32 sets molding equipment.4 sets packing equipment and so on.

SINT has strict production system as bellowed:
