This must be what you care about most.
What sets us apart from other filters on the market?
SINFT sourced multiple common silica gel breathers from the market for rigorous testing.
Test results show: SINFT offers longer service life compared with other products available on the market.

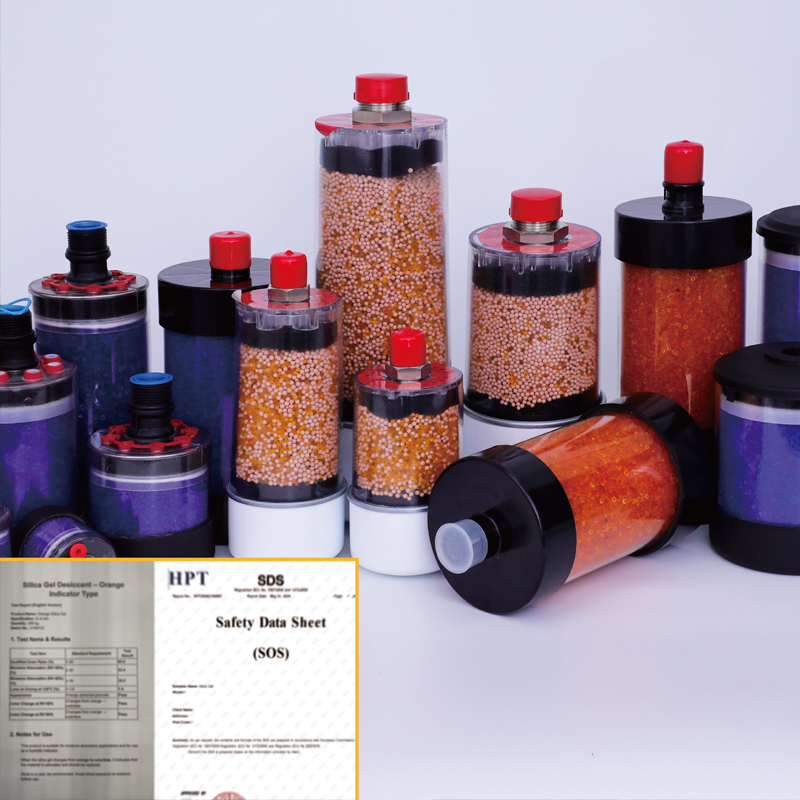

Select Premium Desiccant Material
- Blue Silica Gel Desiccant: Commonly used in SINFT cross-reference models for DC / VG and Leemin
- Yellow Silica Gel Desiccant: High-sensitivity indicator type, commonly used in SINFT cross-reference replacements for Air Sentry / Hydac models
- Mixed-Color Silica Gel Desiccant: No color-change indicator, durable type used by SINFT for RMF / Eton replacement part numbers

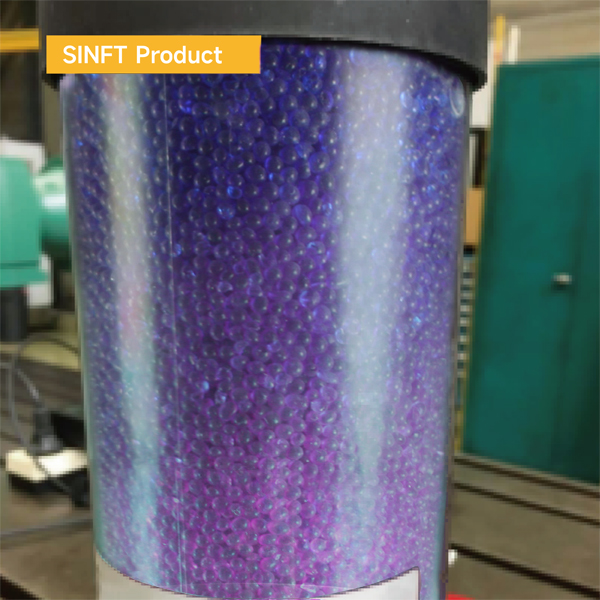

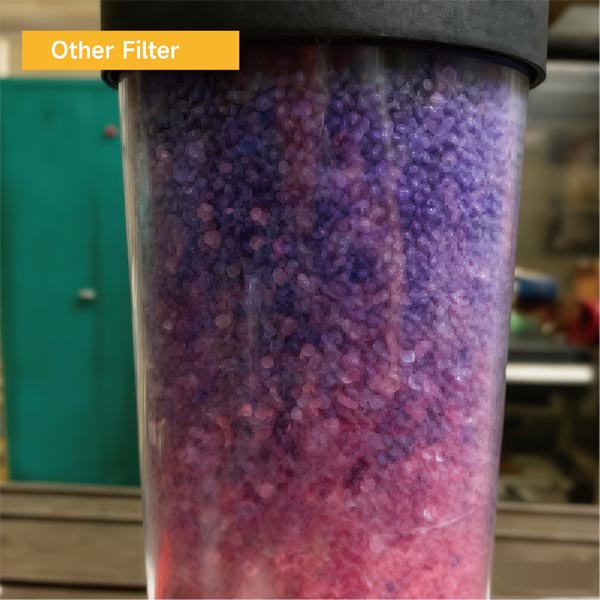

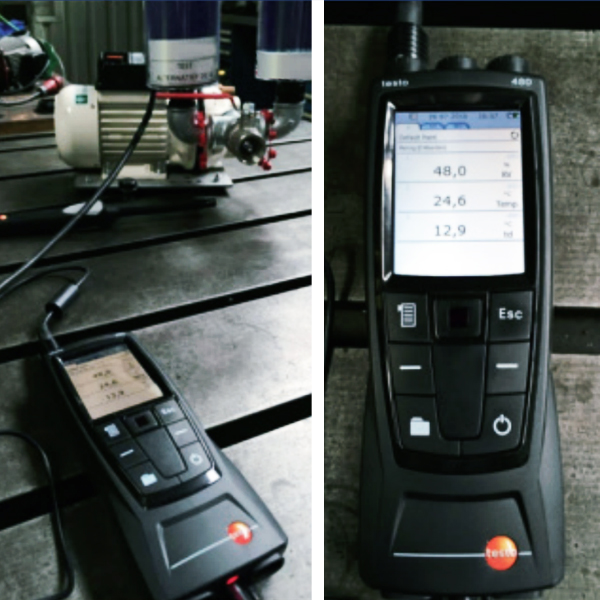

Long-Term Performance Test Report
SINFT sourced multiple mainstream silica gel breathers from the market and conducted over 1000 hours of accelerated aging tests along with real-world condition comparisons.
Test results show: SINFT breathers deliver a longer service life than conventional products on the market.
This must be what you care about most.
What sets us apart from other filters on the market?
- Moisture entering the system
- Airborne particles and oil vapor contamination
- Reduced oil and equipment lifespan
Every time a tank breathes, unfiltered air introduces moisture and particles that can damage oil and components. SINFT breathers stop this problem at the source — combining high-efficiency particle filtration with moisture-absorbing desiccant media to keep your system clean, dry, and protected.
Click to download SINFT product comparison report
Replacement Desiccant Breather by SINFT
SINFT offers a full range of high-performance desiccant breathers compatible with Des-Case and Hydac, delivering superior moisture control and particle filtration at competitive prices. Engineered for reliability in harsh environments, our breathers extend equipment life and reduce maintenance costs for industrial users worldwide.
SINFT desiccant breather provides superior protection — efficiently filtering out fine particles and harmful moisture before they enter the system. Each time the equipment breathes, the desiccant media removes contaminants and water vapor, keeping oil clean and dry even during shutdown.
Backed by years of expertise in hydraulic and lubrication filtration, SINFT offers a full range of compatible replacement desiccant breathers for major global brands such as Des-Case and Hydac, ensuring reliable performance and rapid availability for industrial users worldwide.
Available compatible series:- Replace DesCase DC Standard Series
- Replace DesCase VG (VentGuard) Series
- Replace DesCase HG (HydroGuard) Series
- Replace Hydac BD Series
- Replace Hydac BDE Series
The SINFT Difference — Quality You Can See.
| Feature | Description |
|---|---|
| Domed Cap Design | Better water runoff and corrosion resistance. |
| Integrated Nylon Standpipe | Excellent vibration resistance and even airflow distribution. |
| High-Capacity Check Valves (VG / EX Series) | Prevent moisture backflow, extending breather life. |
| Polyester Filter Element (3µm) | Removes airborne contamination effectively. |
| Honeycomb Oil Mist Reducer (EX Series) | Reduces oil mist contamination and returns oil to the tank. |
| Silica Gel with Color Indicator | Blue-to-pink color change for visual saturation check. |
| Certified Reliability | CE & MD Directive certified — compliance with EU safety standards. |
DC Series – Standard Type
- Reliable, cost-effective moisture and particle control.
- 3 µm polyester filter removes airborne contaminants.
- High-quality silica gel with visible color change (blue → pink).
- Durable housing, easy replacement, long service life.
| SINFT P/N | Height (mm) | Width (mm) | Des-Case | TTI | XCLUDE |
|---|---|---|---|---|---|
| SFT-SDC-1 | 134.9 | 64.1 | DC-1 | TT-1 | LEXS375-28 |
| SFT-SDC-2 | 155.6 | 101.6 | DC-2 | TT-2 | LEXS1-66 |
| SFT-SDC-3 | 206.4 | 101.6 | DC-3 | TT-3 | LEXS1-122 |
| SFT-SDC-4 | 257.2 | 101.6 | DC-4 | TT-4 | LEXS1-188 |
| SFT-SDC-BB | 99.06 | 64.1 | DC-BB | TT-BB | LEXS375-13 |
DC-VG Series – With Check Valves
- Equipped with dual high-capacity check valves to reduce moisture ingress.
- Extended desiccant life by minimizing air exchange when the system is idle.
- Reinforced nylon standpipe ensures stable airflow and vibration resistance.
| SINFT P/N | Height (mm) | Diameter (mm) | Connection | Silica Gel (kg) | Flow (cfm) |
|---|---|---|---|---|---|
| SFT-VG-1 | 135 | 104 | 1" Slip Fit | 0.36 | 16 |
| SFT-VG-2 | 180 | 104 | 1" Slip Fit | 0.64 | 16 |
| SFT-VG-3 | 229 | 104 | 1" Slip Fit | 0.91 | 16 |
| SFT-VG-4 | 274 | 104 | 1" Slip Fit | 1.23 | 16 |
DC-EX Series – Explosion-Proof / Oil-Mist Control
- Honeycomb oil-mist separator returns oil to the tank, keeps air clean.
- Explosion-proof housing for harsh or hazardous environments.
- Same 3 µm filter + silica gel drying system for maximum protection.
| SINFT P/N | Height (mm) | Diameter (mm) | Connection | Silica Gel (kg) | Adsorption (ml) | Flow (cfm) |
|---|---|---|---|---|---|---|
| SFT-EX-1 | 119 | 143.88 | 1" FNPT | 0.54 | 228 | 27 |
| SFT-EX-2 | 163 | 143.88 | 1" FNPT | 1.0 | 417 | 26 |
| SFT-EX-3 | 208 | 143.88 | 1" FNPT | 1.45 | 606 | 25 |
| SFT-EX-4 | 254 | 143.88 | 1" FNPT | 1.91 | 798 | 24 |
SINFT Supports Direct Replacement
Full-Range Compatible Desiccant Breather Solutions

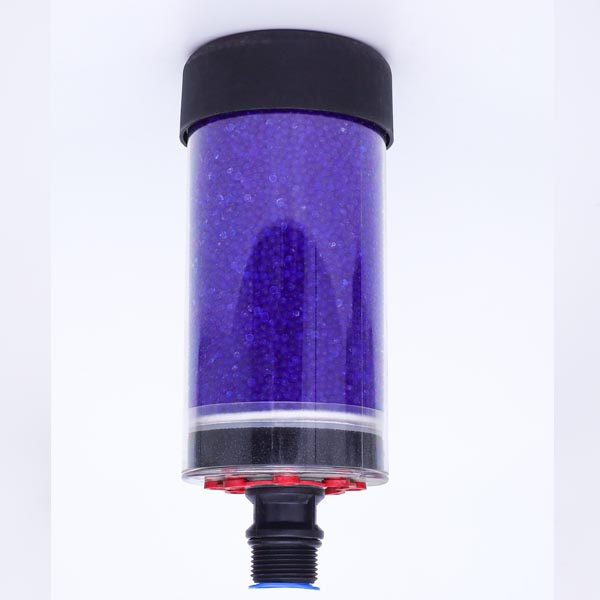

| SINFT P/N | Model | L (mm) | L2 (mm) | D (mm) | Connection | Drying Agent (g) | Flow (m³/min) |
|---|---|---|---|---|---|---|---|
| SFT-DAB-90-90 | DAB-90-90 | 95.5 | 33 | 90 | G3/4 | 85 | 0.5 |
| SFT-DAB-90-150 | DAB-90-150 | 126.5 | 45 | 90 | G3/4 | 170 | 0.5 |
| SFT-DAB-120-145 | DAB-120-145 | 145 | 9 | 120 | G1 1/4 | 285 | 1.25 |
| SFT-DAB-120-255 | DAB-120-255 | 255 | 150 | 120 | G1 1/4 | 570 | 1.25 |

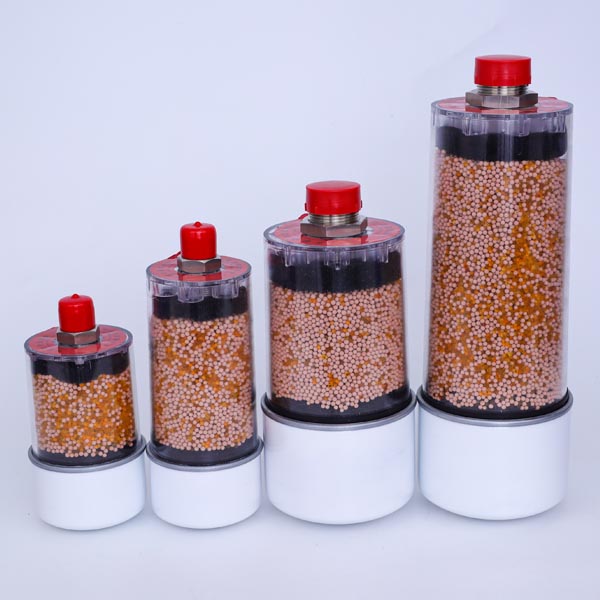

| SINFT P/N | RMF Type | Weight (kg) | ZR Gel (cc) | Water Ads. (g) | Max. Air Flow |
|---|---|---|---|---|---|
| SFT-ACL93R | ACL93R (C) | 0.9 | 300 | 86 | 700 l/min |
| SFT-ACL96R | ACL96R (C), (V) | 1.1 | 600 | 172 | 700 l/min |
| SFT-ACM61R | ACM61R | 0.4 | 100 | 29 | 50 l/min |

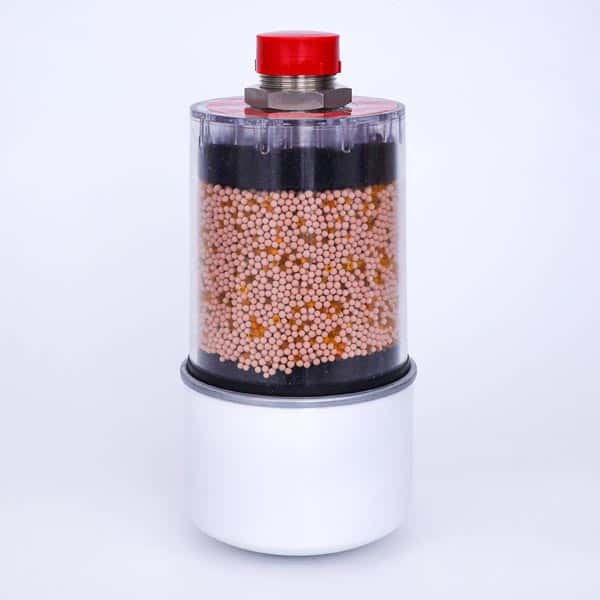

| SINFT P/N | ETON Model | Flow (m³/min) | Filter (µm) | Weight (g) | Connection | Silica (g) |
|---|---|---|---|---|---|---|
| SFT-BFD-95 | BFD-95 | 0.5 | 3 | 1000 | G ¾ | 225 |
| SFT-BFD-100 | BFD-100 | 0.5 | 3 | 1320 | G ¾ | 450 |
| SFT-BFD-125 | BFD-125 | 1.25 | 3 | 2950 | G 1-¼ | 750 |
| SFT-BFD-130 | BFD-130 | 1.25 | 3 | 4300 | G 1-¼ | 1500 |

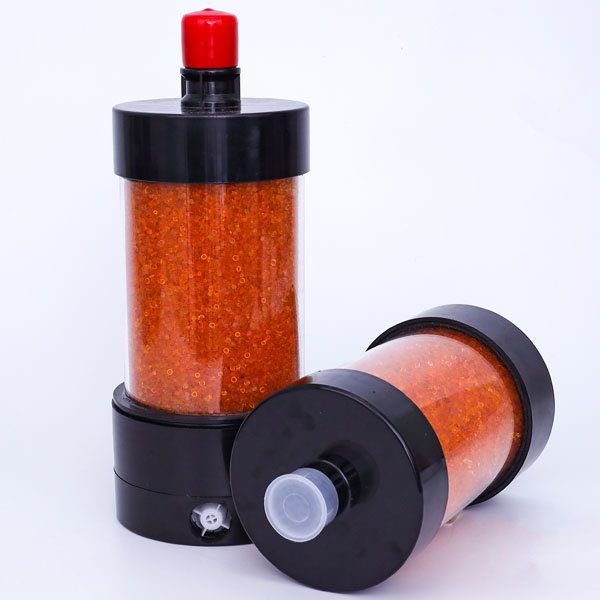

| SINFT P/N | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| SFT-BDH100 | 128 | 127 | 33 | 131 |
| SFT-BDH200 | 150 | 127 | 33 | 131 |
| SFT-BDH400 | 230 | 127 | 33 | 131 |

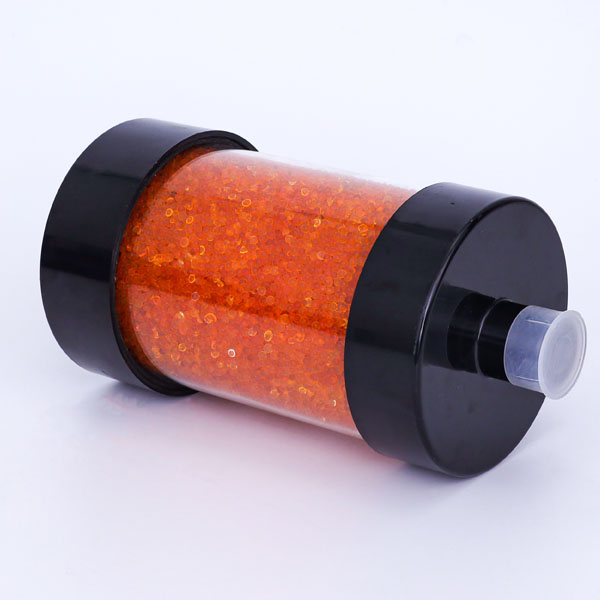

| SINFT P/N | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| SFT-BDF100 | 172 | 131 | 32 | 131 |
| SFT-BDF200 | 195 | 131 | 32 | 131 |
| SFT-BDF400 | 275 | 131 | 32 | 131 |
SINFT Provides Ample Filter Spare Parts Inventory
We understand the impact of downtime on your business! SINFT ensures a robust inventory of filter spare parts to keep your operations running smoothly.
Advanced Inventory Management System
SINFT maintains a sophisticated inventory management system with dedicated personnel and advanced software, ensuring a large stock of inventory items to serve ODM/OEM customers efficiently.
- 2,100 m² storage space: 1 finished goods warehouse and 2 raw material warehouses.
- Proprietary warehousing software for organized filter material management.
- Automatic alerts for low raw material levels, prompting immediate restocking by the procurement team.
Strict Pre-Shipment Quality Inspection Process
We strive to ensure timely delivery with rigorous quality checks before shipment, guaranteeing product reliability and customer satisfaction.
Comprehensive Inventory and Packaging Solutions
- Standard Filter Packaging: Plastic bag + cardboard box + wooden crate.
- Customized Outer Packaging: Packaging pallets/wooden crates designed with leg heights (10cm+) and spacing compliant with European forklift standards.
- Customized Packaging: Tailored for special filters and OEM clients with specific requirements.
- Innovative Packaging Design: Customized to product shapes and characteristics to prevent transport damage.
- Product/Packaging Marking: Laser marking on products and color-printed cardboard packaging.
Your Advantages with SINFTFILTER
- Over 10 years, we have established relationships with more than 80 suppliers, accumulating over 300 different filter media for various applications to meet diverse customer needs;
- 3D printing and drawing design capabilities;
- All production personnel receive regular training, and core production staff hold vocational technician certificates and skill qualifications.
Optional Accessories Available
Customizable Adapters for Various Tank / Equipment Interfaces
| Adapter Type | Description |
|---|---|

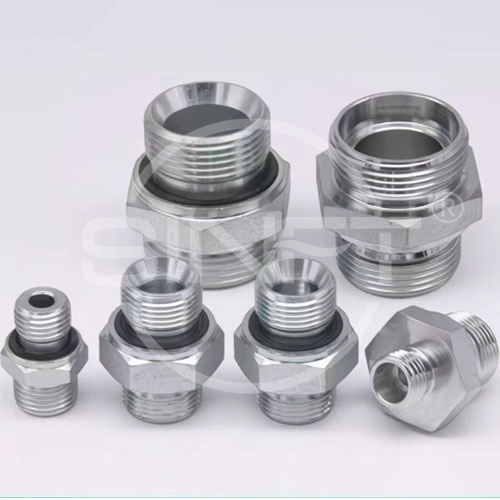

| NPT | Standard National Pipe Thread (NPT) interface, widely used in North America and global industrial systems. |

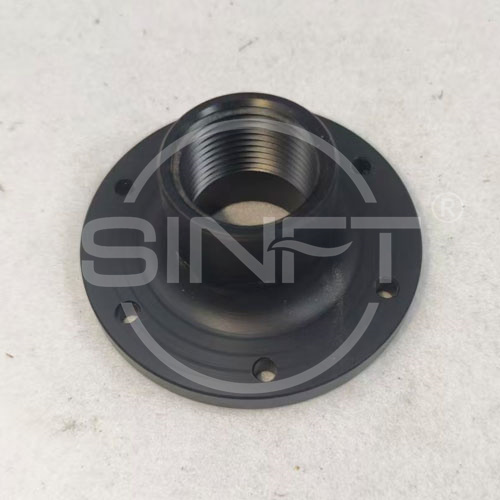

| 3/8" Multi-Fit | 3/8-inch universal adapter compatible with NPT, BSPP, and BSPT threads for flexible installation. |
| 1" Multi-Fit | 1-inch universal adapter supporting NPT, BSPT, and NPSM threads, suitable for medium to large reservoirs. |
